Extron VGA Cat 5 verlenger [90 meter - High End]

De Extron VTT/VTR Twisted Pair VGA verlenger is de ideale oplossing voor lange VGA kabels. Deze set kan VGA signalen tot 90 meter verlenger zonder kwaliteitsverlies.

Extron

De Extron VTT/VTR Twisted Pair VGA verlenger is de ideale oplossing voor lange VGA kabels. Deze set kan VGA signalen tot 90 meter verlenger zonder kwaliteitsverlies.

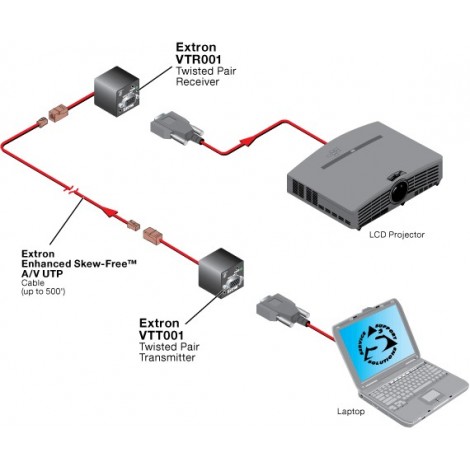

The Extron VTT001 Twisted Pair Transmitter sends high resolution VGA/RGBHV signals 300 feet (90 meters) or more over any CAT 5-type twisted pair cable or Extron Enhanced Skew-Free™ AV UTP cable. Compatible with RGBHV or RGBS signals at resolutions up to 1600 x 1200, the VTT001 is perfect for boardrooms, large training facilities, or other applications that require a compact, economical solution for sending computer-video signals long distances over a single CAT 5-type cable.



The VTT001 is available in two styles: The VTT001 is an extremely compact tabletop model that can be placed in any convenient location and the VTT001 MAAP is a double space MAAP - Mini Architectural Adapter Plate that can be installed into Extron CPM Series wall mount, floor mount, table mount, and rack mount modular connector plates. The MAAP version is available in black or white.



The VTT001/VTR001 Series operates with an external power supply connected to just the receiver or just the transmitter. This provides system design flexibility since the transmitter module can be installed in a convenient location, even if local power is not available.



When using data grade twisted pair cable for sending high-resolution video signals long distances, a problem called skew can cause a distortion in the image, resulting in visible color separation. Extron offers two options for solving this problem and restoring image quality. The first option is to place an SEQ 100 15HD Skew Equalizer at the receiving end of any cable run where skew is a problem. The second option is to use Extron's Enhanced Skew-Free™ AV UTP cable to make system connections.



Features



  • Input: Female 15-pin HD





  • Output: Female RJ-45 connector





  • Transmits high resolution computer-video signals 300 feet (90 meters) or more over CAT 5-type cable





  • Compatible with VGA-UXGA, Mac, Sun®, and SGI computers





  • Compact tabletop and MAAP versions available





  • Remote power capability





  • Energy-efficient external universal power supply included, replacement part # 70-778-01 — Provides worldwide compatibility, low power consumption, and reduced operating costs.
