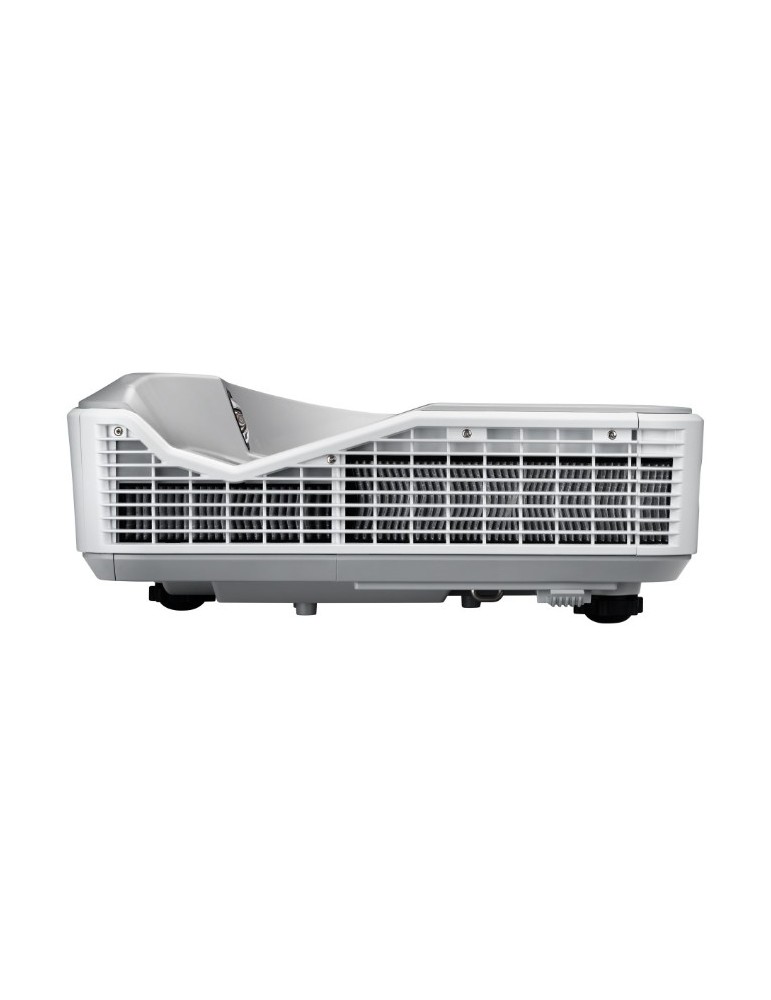

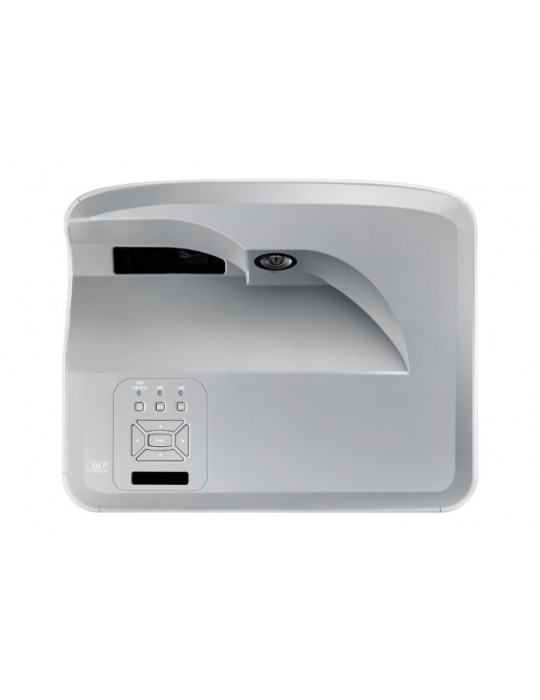

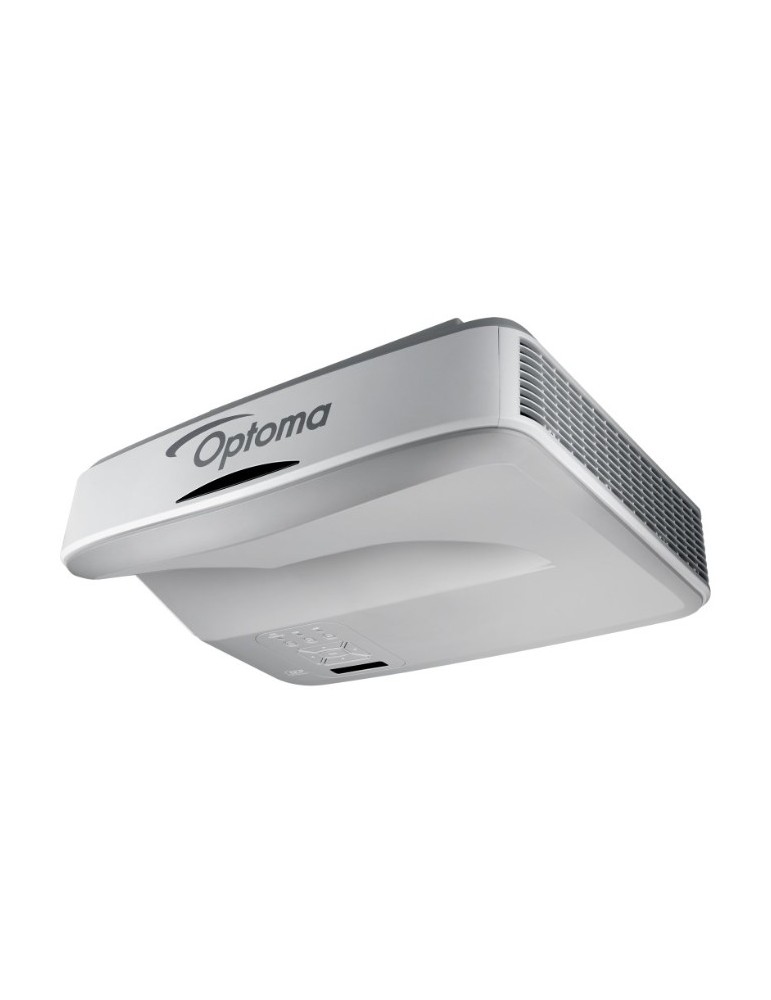

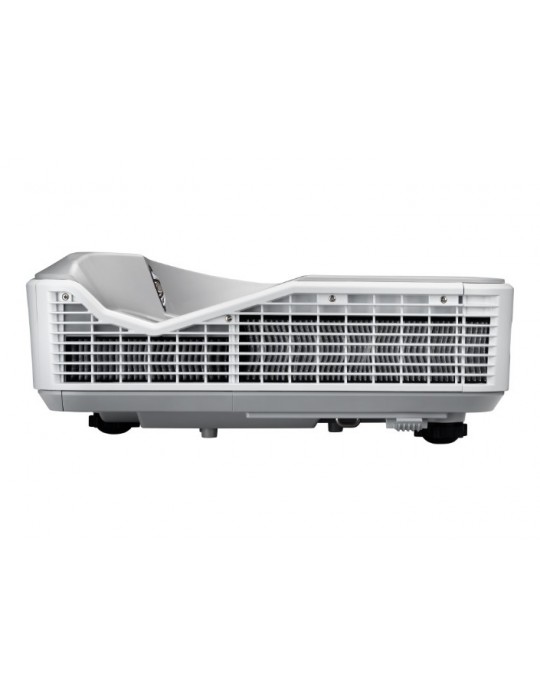

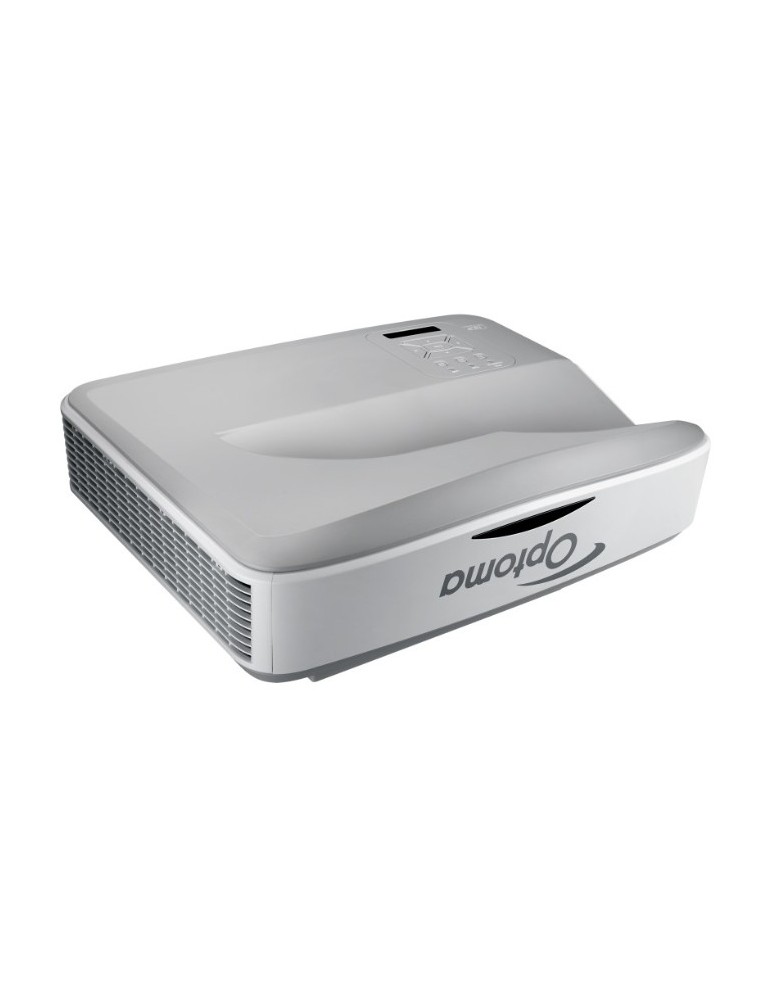

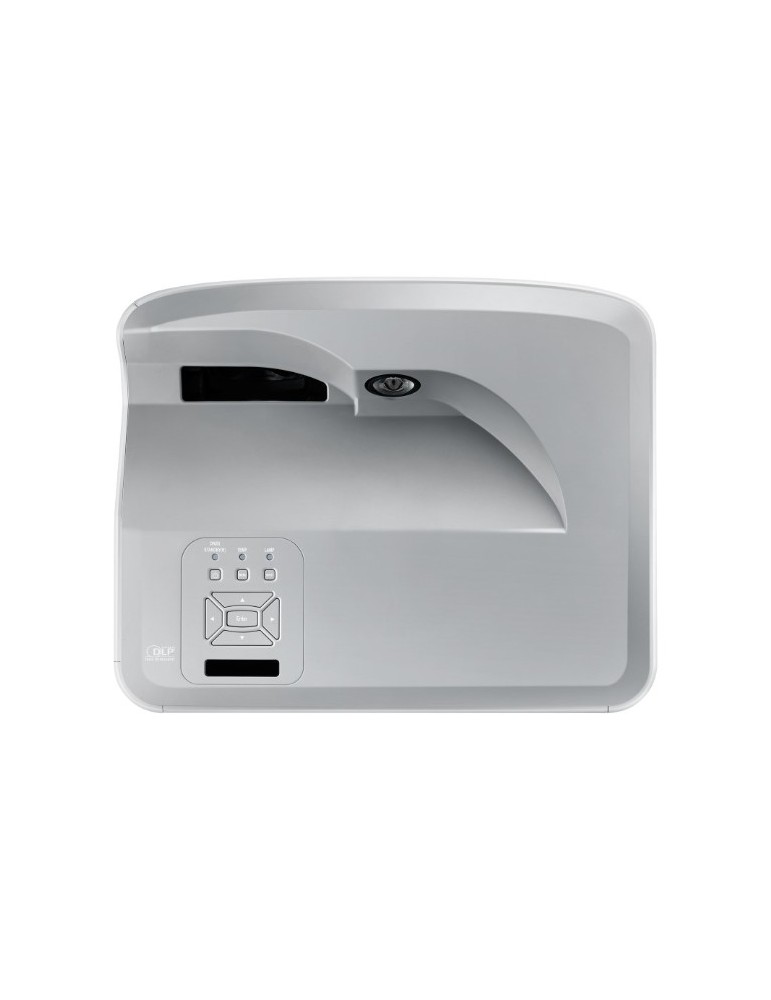

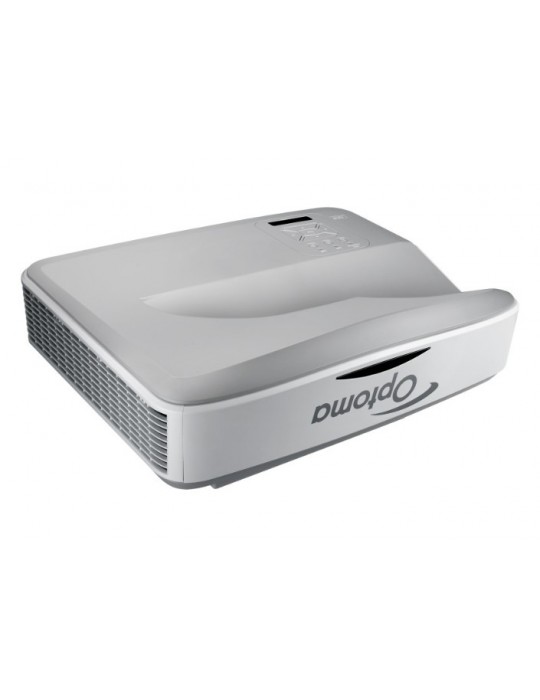

Optoma ZH400USTi
- 20,000 hours maintenance-free laser light source at full brightness**
- Dust resistant – Independently tested, IP5X certification for total reliability
- 4000 lumens laser 1080p DLP ultra short throw projector
- Versatile installation - Portrait and downward projection
- Touch-Beam Interactive
Weighing only 5.6kg, this interactive projector can be mounted just centimetres away from a wall or surface and can project an image size of over 100 inches (254cm).
Supporting 24/7 operation and versatile orientation, the ZH400USTi is a flexible, powerful and bright ultra short throw projector which makes for a superb signage solution where space or accessibility can be limited, such as shop windows or retail displays.
DuraCore
Industry leading lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design. 20,000 hours provides a staggering 13 years of normal use*1 or 2.2 years if run continuously 24/7.
*16 hours per day, 250 days per year
Museums, exhibitions and visitor centres
Interactive exhibits are a guaranteed way to capture interest at visitor centres. With stunning visuals now a frequent requirement for these types of installation, the ZH400USTi high resolution makes it perfect for the task. With its ability to perform rear and downward projection, and also to operate in ‘portrait’ mode, the ZH400USTi is perfect for large, touch-sensitive displays, offering a fully interactive experience to visitors.
Retail displays and digital signage
The ultra-high 100,000:1 contrast ratio ensures no detail is lost in the image which is key for corporate presentations, retail signage and projection mapping where every detail matters. The 4000-lumen light source delivers exceptionally consistent brightness, rendering striking & vibrant images, even in high levels of ambient light. Large images with a diagonal measurement of 100” can be generated from a throw distance of just 31cm.
Classrooms
Ideal for classrooms, the interactive ‘TouchBeam’ technology allows up to 10 pupils to participate, using only a finger. The DuraCore laser light engine replaces the traditional lamp based projector removing the need for replacement lamps, maintaining low running costs. Unlike lamp based projectors, the DuraCore laser supports instant power on/off. The efficiency of the laser helps the projector run more quietly with lower energy consumption and heat dissipation.
Control Rooms
High resolution and high contrast make the ZH400USTi suitable for installation in control rooms, where fine lines and small text must be clearly visible. In addition, the long lifespan of the DuraCore laser light source and DLP panel makes the projector capable of 24/7 operation, and therefore especially suited to ‘always on’ environments.
Simulators
As industrial-grade simulators for aircraft, track cars and commercial vehicles become increasingly prevalent, the demand for ultra-high resolution projectors capable of maintaining high consistent brightness levels increases. Simulators can now be implemented using fewer projectors, reducing overall complexity in terms of hardware. Thanks to the native 1920 x 1080 resolution, even complex, computer-generated images can be displayed with remarkable clarity.
Engineering and Design
CAD environments, architecture and 3D modelling all require projected images with absolute clarity and accuracy. The projector is fully 3D compatible, and can be used in conjunction with active shutter glasses to generate convincing 3D visuals.
Ultra short throw lens
High quality UST lens delivers large images from a short projection distance. Presenter dazzle and image shadows are avoided.

Exemplary service
A huge range of service centres across Europe and extensive warranty and servicing packages.

Bright, detailed rich in colour images
4000 lumens, Full HD 1080p, 100,000:1 contrast ratio. Wide coverage of Rec. 709 colour gamut.

Dual HDMI inputs
Project crystal-clear images using either of the twin HDMI inputs. HDMI V1.4a is supported, including MHL on one of the inputs. Computer and HD video sources are supported, while separate audio cables are no longer required.

TouchBeam interactive technology
Allows several people to work on the screen concurrently, with no need for an electronic whiteboard or pen.

Image quality
Image quality is of paramount importance for every installation product in the ProScene range. The ZH400USTi delivers deep rich and colourful images whilst maintaining an exceptional high level of consistent brightness that will captivate and engage the audience.
ProScene uses DLP® technology for its image quality and unmatched reliability. The reflective nature of DLP® micro-mirror technology provides highly efficient bright images with great contrast whilst maintaining precise colour accuracy and natural, real-world colour reproduction. For demanding professional applications, the proven reliability of DLP® technology makes it the obvious choice.
Projector security
The ZH400USTi features a Kensington Lock slot to deter theft, while password protection prevents unauthorised use.
Dust resistant optical engine
The ZH400USTi has been independently tested and certified with an IP5X dust resistance rating. Outstanding resistance to dust in combination with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments; the dust resistance was tested by an independent laboratory in accordance with IEC standard 60529 and was certified with an IP5X rating. The dust resistant filter-free design prevents dust and dirt from affecting the system, ensuring optimal image quality with minimal maintenance.
Perfect projection
Misaligned images can be quickly adjusted with vertical keystone correction.

Audio capabilities
The powerful built in 10W loudspeaker can be used in conjunction with a microphone, to capture the attention of the audience. Expensive additional audio hardware and cabling can therefore be eliminated in smaller meeting rooms.
For larger installations, audio inputs from a computer or video source can also be handled, allowing the ZH400USTi projector to act as an audio switcher and volume controller, alongside an external audio amplifier and speakers.
Enlarge your images
The digital zoom feature can be used to increase the magnification of a particular area, allowing explanation of the projected image in more detail.

Versatile Installation

Total cost of ownership
For demanding applications the total cost of ownership of a projector is not in the purchase cost but in expensive maintenance and service. ProScene projectors require very little maintenance; have no user serviceable parts inside and no filters that require periodic replacement. The result is low cost, predictable service cycles, enabling planned down time to be minimised.
Enhanced colour gamut
The ZH400USTi produces superb colour accuracy and powerful colour performance because of the wide coverage of Rec. 709 colour gamut typically associated with DLP® technology.
System integration and control
Multiple ZH400USTi projectors can be monitored over the LAN and can also send an email alert via Crestron RoomView in the event of an error or a lamp failure. Projector status can be monitored via a web browser, while Extron IP Link, AMX Device Discovery and PJ-Link protocols offer remote management of most functions across a network, keeping you in control wherever you are.




Ultimate control
Cut up to 30% from your energy bills using 24-hour automated power scheduling to ensure that projectors power off when not in use.

Download Crestron RoomView® Express for free at www.crestron.com/getroomview
