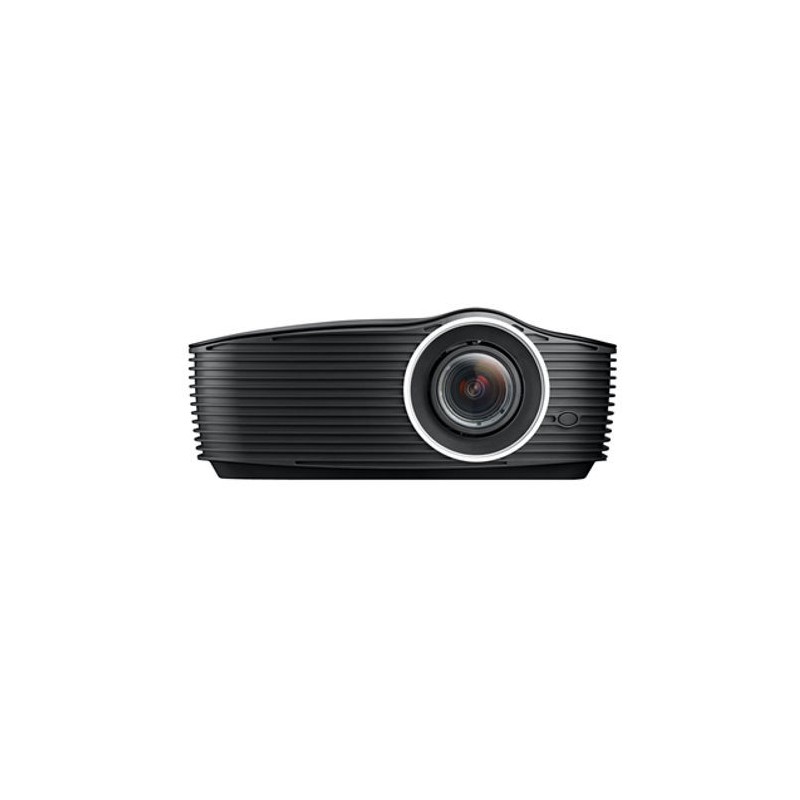

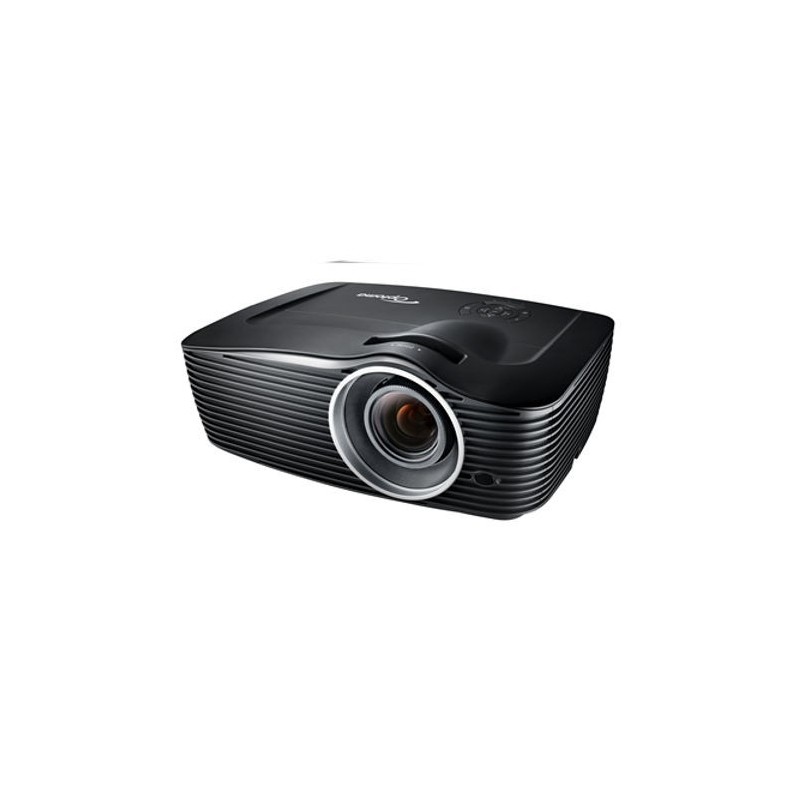

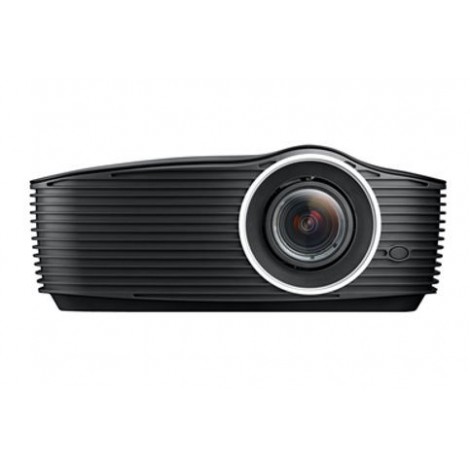

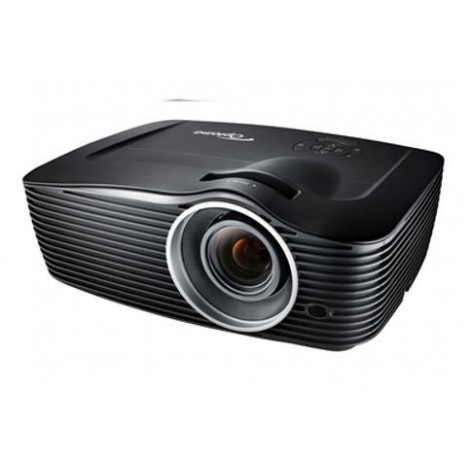

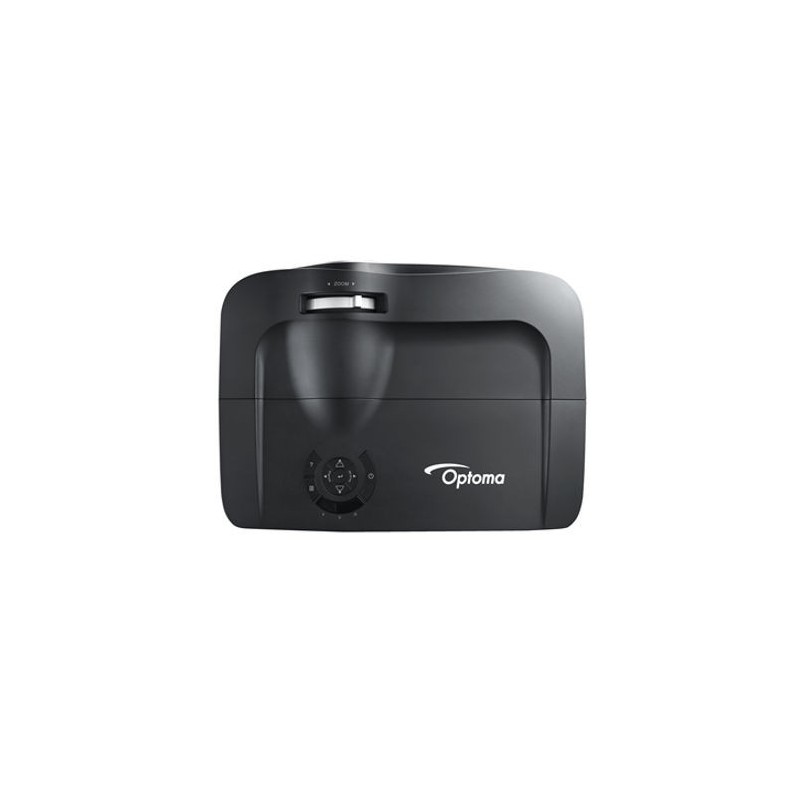

Optoma heeft met trots de W501 geintroduceerd. Deze krachtige WXGA installatie projector is geschikt voor al het zware werk. De W501 heeft een lichtopbrengst van 5000 ansi-lumen en is voorzien van een aantal handige features zoals verticale lens-shift, draadloos presenteren, DICOM simulator, Crestron / Extron / AMX / PJLink ondersteuning en Full 3D!

W501
Optoma
€ 1.709,00
Inclusief belasting
Hoeveelheid

Optoma heeft met trots de W501 geintroduceerd. Deze krachtige WXGA installatie projector is geschikt voor al het zware werk. De W501 heeft een lichtopbrengst van 5000 ansi-lumen en is voorzien van een aantal handige features zoals verticale lens-shift, draadloos presenteren, DICOM simulator, Crestron / Extron / AMX / PJLink ondersteuning en Full 3D!

De W501 kan zeer eenvoudig worden gebruikt door Direct Power On en Direct Signal On. Dit houdt in dat de projector automatisch opstart bij het aansluiten van de spanning of een actieve VGA bron.



A Powerful Performer

  • Extensive features - Full 3D, PC-Free / LAN Presentations
  • 5000 Lumens, Full HD 1080p resolution
  • Ultimate Control - Full support for Crestron, Extron, AMX, PJ-Link and Telnet LAN commands
  • Installation flexibility – Vertical lens shift and 1.5x zoom
High brightness, excellent connectivity and amazing colours ensure the Optoma EH501 full HD 1080p projector is the perfect choice for any large venue or conference room.

Exceeding the demands of 21st century, the EH501 is packed with wide array of features to make presenting both easier and more exciting than ever before…
The environmentally friendly EH501 has energy saving features including Eco+ lamp power management, <0.5W standby mode and auto power off, saving you both time and money. Our unique Optoma Colour Guarantee ensures hassle-free, long-lasting projection.
Effortless presenting

Enjoy hassle-free presenting using the USB Reader to project a JPEG presentation directly from a USB flash drive.

Alternatively view up to 4 PC/Laptops side-by-side at the same time, using the free Optoma Presenter software...

...or even broadcast your presentation across a wired/wireless network to as many as 8 projectors simultaneously.

Wireless support requires the optional Optoma mini-WiFi dongle accessory, available separately.

3D Technology

Using the inherent speed of DLP® technology, Optoma Full 3D projectors can output video and images at an astonishing rate of 120Hz, allowing you to show full screen, full colour, stereoscopic 3D. The 3D effect is generated by splitting this signal into two standard video streams, one for each eye. Using DLP® Link™ technology, the 3D glasses synchronise with the image on screen to filter each stream to the correct eye. Your brain then combines the two streams to make them jump into life.

The EH501 supports multiple 3D formats from various devices such as PC, Blu-ray 3D™, Sony® PS3, Microsoft® Xbox 360 or 3D TV broadcast systems.

Image quality

A Full HD projector with 1920x1080 pixels has more than twice the resolution of an HD-Ready display. Fully compatible with HDTV broadcasts and high definition media, the EH501 is able to display un-scaled 1080p signals in their original form for use where exceptional clarity and detail are essential.



Extensive connectivity

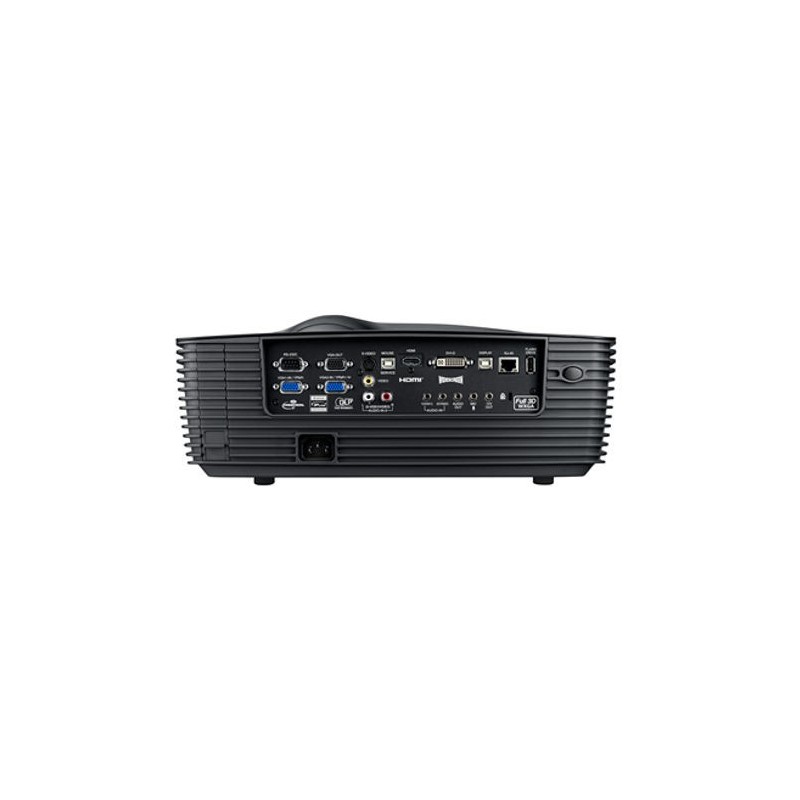

This Full HD projector accepts a wide variety of computer and video input signals. Connectivity includes: HDMI, DVI-D, dual VGA (Component via adaptor), S-Video, Composite, USB Reader, VGA-Out, RS232, RJ45 and +12V trigger. In addition the optional Wi-Fi accessory can be securely connected to a dedicated hidden USB port.

Five audio inputs for HDMI, PC, video and microphone sources enable the EH501 to function not only as an audio switcher and volume controller, but also as a basic PA system for larger meeting rooms; thereby eliminating complicated and costly additional audio hardware and cabling.

HD Source
DVD Player
2 x PC/Laptop

Easy installation - 1.5x zoom and lens shift

The EH501 can project a 100” diagonal image from any distance between 3.03m and 4.54m. The Lens Shift system can be used to adjust the vertical position of the projected image within the range detailed in the diagrams below.

When replacing existing projectors, the 1.5x zoom and Lens Shift systems greatly increase your installation flexibility.

+135% offset

Lens Shift


DICOM simulation mode

Designed specifically for larger meeting rooms and lecture theatres, the EH501 includes a special DICOMsim mode that has been specially tuned for viewing greyscale images, perfect for viewing X-rays and scans during medical training.*

*The EH501 is not suitable for use in medical diagnosis.

Clear, focused Images

DarkChip3™ from Texas Instruments, combined with Eco+ dynamic lamp technology produce a stunning 15,000:1 contrast ratio for pin sharp graphics and crystal clear text. Crisper whites, ultra-rich blacks makes images come alive and text easier to read - ideal for business and education presentations.


15,000:1 Contrast Ratio

Amazing colours

The EH501 incorporates BrilliantColor™ technology to produce stunningly bright images with perfectly balanced, life-like colours.

System integration and control

Using the free Crestron Roomview software, multiple EH501 can be monitored over LAN and also provide the user with an email message alert in case an error occurs or a lamp fails. Cut up to 30% from your energy bills using 24-hour automated power scheduling to ensure that projectors power off when not in use.

The web browser interface and full support for Extron’s IP Link, AMX dynamic device discovery and PJ-Link protocols, allow almost all aspects of the EH501 to be controlled across a network, reducing installation costs and keeping you in control, wherever you are. While RS-232 connectivity ensures legacy support for existing control systems.

Global monitoring of all AV devices
Track projector lamp life
Email alerts and instant notifications help desk requests, service reminders, device failure or theft
Event Scheduling
Projector 1
Projector 2
Projector 3
Laptop
Centralised Management PC
Download Crestron RoomView® Express software from:
www.crestron.com/getroomview

Easy lamp replacement

In applications requiring smooth continuous operation, minimising service time is essential. The EH501 lamp can quickly be replaced without the need to remove the projector from where it is installed.

+12v Trigger

Power on both your projector and screen at the touch of a single button. For ultimate convenience, connect an Optoma electric screen directly to your EH501.For more info on Optoma screens, please visit www.optomaeurope.com

Extra features

Direct & Signal Power ON - Start up time can be significantly reduced if standby mode is bypassed, eliminating the need to use the ‘Power’ button on the remote control or the projector keypad.
Direct Power ON switches the projector on when the power cable is inserted into an active power outlet.
Signal Power On switches the projector on when an active VGA source is connected to the unit.

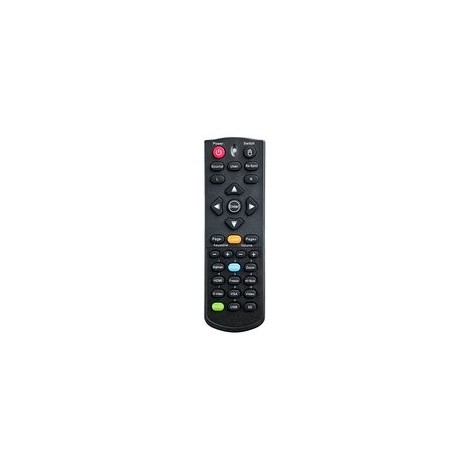

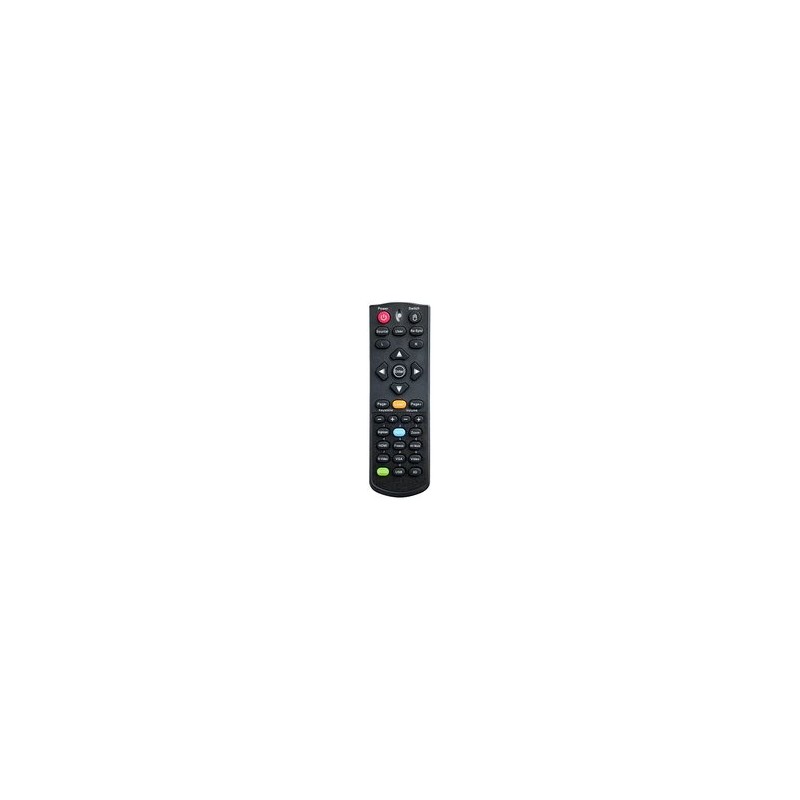

Key pad lock – once enabled prevents unauthorised adjustments ensuring the projector can only be controlled via the remote control.
Logo capture - customise your start up screen
