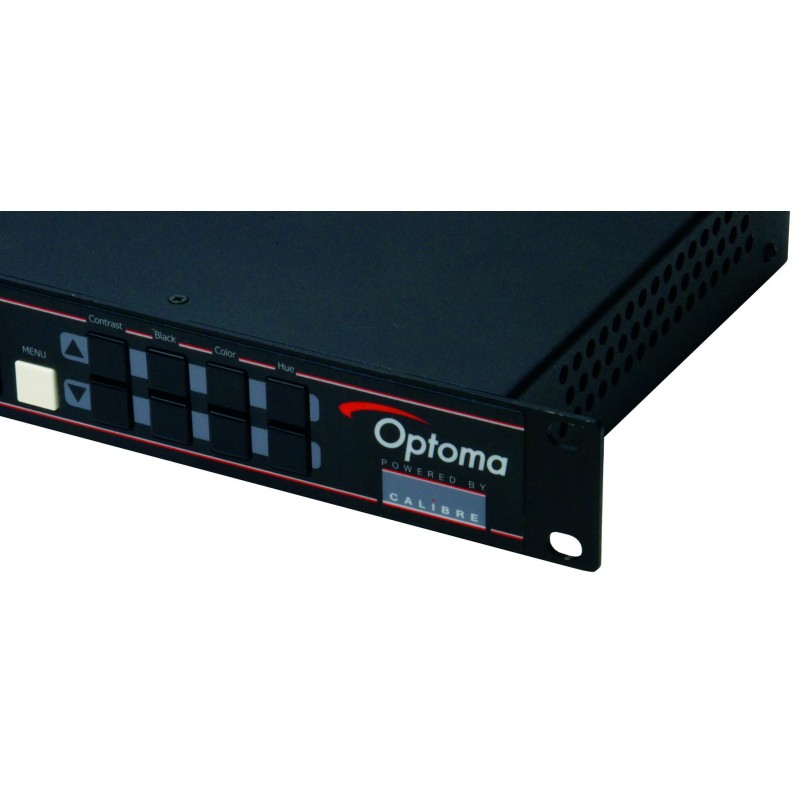

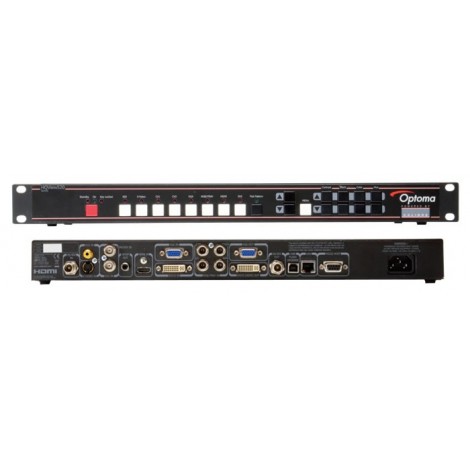

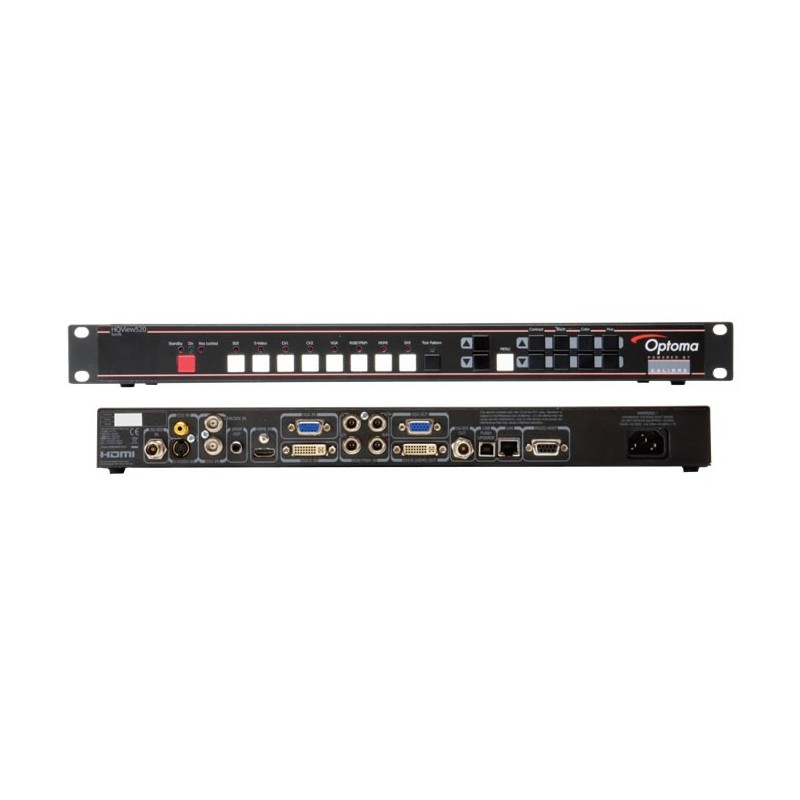

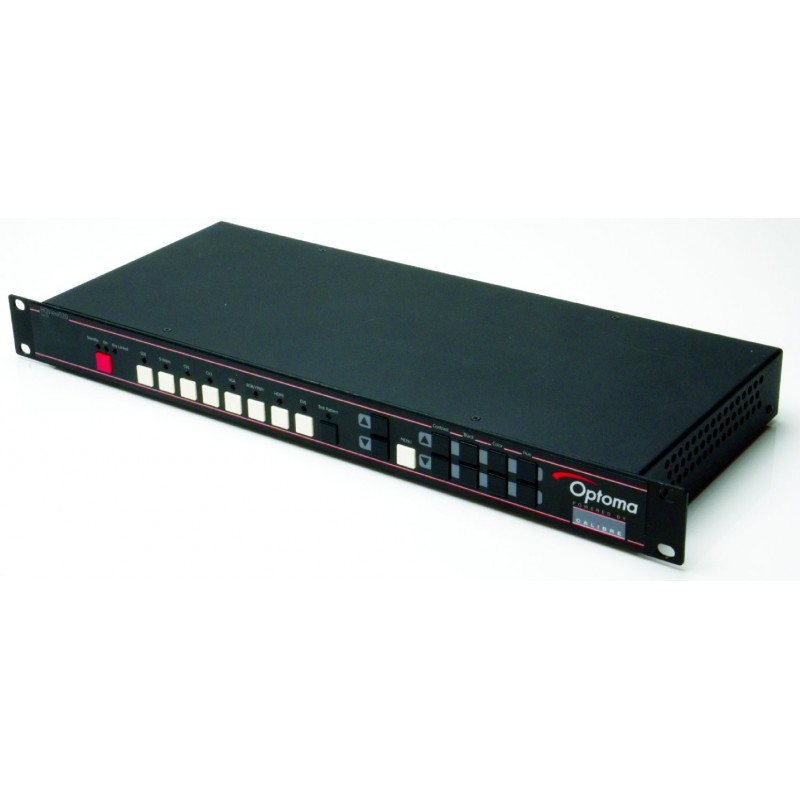

Optoma HQView520 [PROSCENE]
De HQView520 is een universele HQV scaler, switcher en scan-converter in een met de mogelijkheid tot edge-blending en warping. Daarnaast biedt de HQView520 uitgebreidde aansluitmogelijkheden zoals HDMI, VGA en 3G-SDI!
De HQView520 is een universele HQV scaler, switcher en scan-converter in een met de mogelijkheid tot edge-blending en warping. Daarnaast biedt de HQView520 uitgebreidde aansluitmogelijkheden zoals HDMI, VGA en 3G-SDI!
De HQView520 is een resultaat van de samenwerking tussen Optoma en Calibre. Dit apparaat is specifiek ontwikkeld om te werken met de Optoma ProScene projectoren.
Uitleg edge-blending (Engels):
Edge-blending technology solves this problem by eliminating the visible banding and creating a single bright, high resolution image across the screen.
Some applications call for an image that is brighter and higher resolution than can be provided by one projector. In this situation a single image can be created from multiple projectors but unless done well the image will show visible bands where the projected images overlap
Simple Guide - How to blend projection images on a flat screen using 4 corner warp

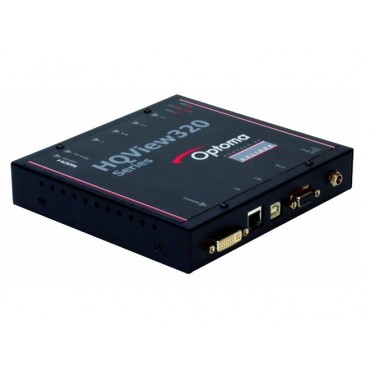

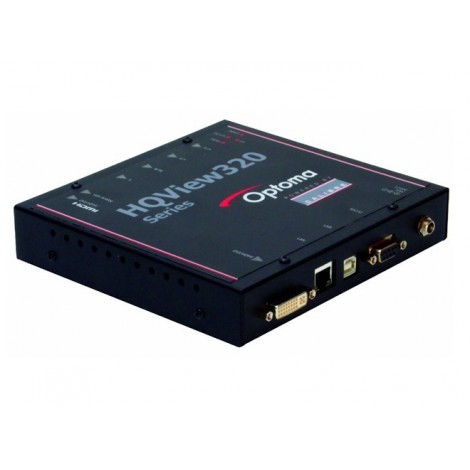

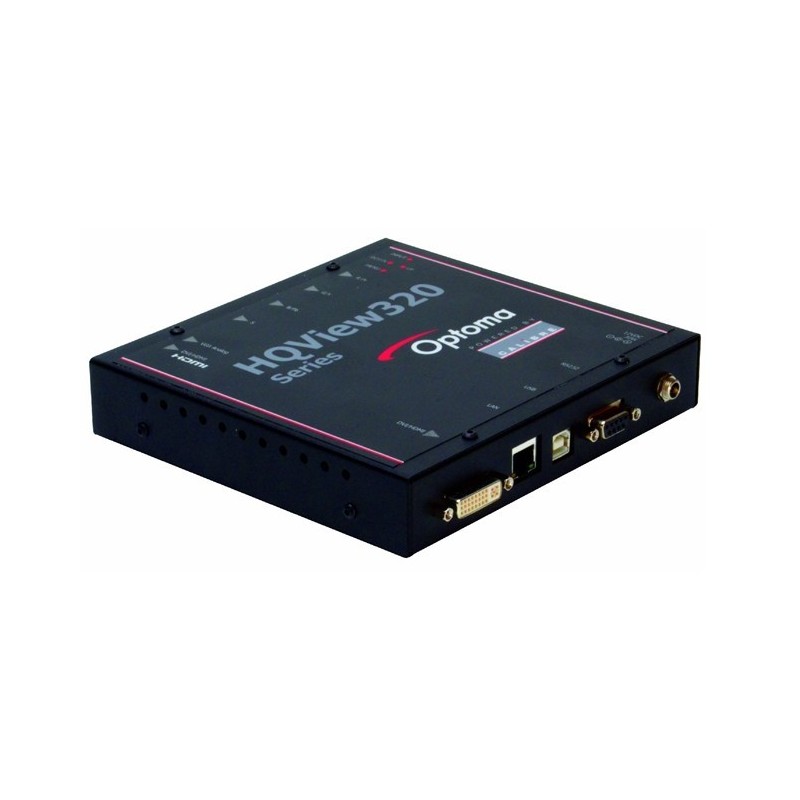

.Edge blending multiple projectors in an array makes it possible to create very bright, high-resolution very wide projection displays. By using the HQView320 or HQView520 you can precisely control multiple, edge-blended images seamlessly, quickly and easily.
Traditionally blending solutions are time-consuming and complicated to set up with many incompatibilities between blending solutions and projectors. The Optoma blending solution removes this issue. Each Optoma ProAV projector model has been painstakingly tested with the HQView320/520 and a series of optimised presets developed that greatly reduces the complexity and time required to setup blending projects.
If you do require help with your blending project, uniquely, the industry leading Optoma ProAv support team is on hand to support your complete blending project – the blending boxes and the projectors as a single system. This greatly simplifies the support process for you and enables us to assist you get your blending projects back on track quickly and efficiently.
For more than ten years Optoma has been one of the world’s foremost projector designers and manufacturers - amongst the very few companies that focus exclusively on projectors.
Today the Optoma range represents the evolution of projection expertise, honed and refined by manufacturing and supporting millions of projectors the world over. This knowledge and skill has been distilled into our products and support services which are designed specifically for demanding professional applications.
- Higher education
- Lecture theatres
- Houses of worship
- Museums
- Auditoriums
- Boardrooms
- Broadcast studios
- Large classrooms
- Exhibitions
- Conference rooms
- Digital signage
- Stage shows
- Live events
- Projection Mapping
- Meeting rooms
- Post production
- Theatre
- Trade shows
Harnessing the power of the ReonTM video processor from IDT, running state of the art HQV algorithms with expertly designed hardware and firmware from Calibre, HQView520 is a highly flexible image scaler and scan converter which provides stunning image quality for professional, broadcast and corporate AV users.
HQview520 features 4-sided soft edge blend for seamless blending of multiple projectors and includes flexible geometry correction functions able to correct image shape and projector misalignment by dragging and dropping each image corner, or by pin/barrel, rotation or by keystone and rotation.
Full warp mapping is also supported by HQView520. A PC application is included for easy warp map creation or third-party generated warp maps can also be processed from automatic image alignment systems making HQView520 ideal for dual overlaid projector alignment in 3D systems.
HQView520 has 3G-SDI input and out connectivity with backwards compatibility with HDSDI and SDSDI. A Genlock input is provided for studio/staging, compatible with bi or tri-level sync or black & burst.
|
|
Inputs
2x Composite Video CVBS (NTSC, PAL & SECAM),
1x via BNC jack and 1x via Cinch/RCA
1x YC/S-Video via 4 pin mini DIN
1x Component analog video YPbPr(S) or RGsB/RGBS via 3 or 4 x BNC jack
1x HDMI with HDCP, 8/10/12 bit video compatible, 10-bit internal processing depth. Audio strip-off of SPDIF compatible formats
1x DVI with HDCP
1x VGA Analog via 15HDD
1 x 3G-SDI, accepts 3G, HD and SD SDI signals via BNC supports 4:2:2 and 4:4:4 formats with audio de-embed
1x Genlock (V-Lock) input via BNC, accepts bi-level, tri-level sync or black & burst, 50/59.94/60Hz formats
Supported video formats:
HD 720p, 1080i, 1080psf (psf digital only), 1080p23.97/24/25/30, 1080p30, 1080p50, 1080p59.94, 1080p60
ED 480p, 576p (not via SDI)
SD 625i (576i), 525i (480i)
Common VESA graphics formats from 640x480 to 1920x1200 (with reduced blanking for 1920x1200 and 1600x1200 modes)
Multi standard support for CVBS & YC in PAL, NTSC, SECAM formats with selectable 3D comb for composite
Note: PIP and edge blend are mutually exclusive so cannot be used simultaneously
Outputs
1x 3G-SDI
1x DVI/HDMI with HDCP (HDMI with deep color 8/10/12 bit support, via DVI connector)
1x VGA Analog via 15HDD
1x S/PDIF digital audio via RCA
NB: 3G-SDI and VGA Analog outputs are disabled with HDCPencrypted input. Not all outputs are available simultaneously
Supported Output formats:
DVI/VGA common VESA formats 640x480 to 1920x1200, 720p, 1080p
3G-SDI in SMPTE formats 480i, 576i, 720p, 1080i, 1080p with selectable audio embed
Selectable Genlock (V-Lock), I/O lock or frame rate conversion mode
Selectable aspect ratio conversion
Selectable vertical temporal filter for flicker reduction of interlaced outputs (edge blend not available in this mode)
User Controls
Remote control via RS232, TCP/IP API and Web Server.
PC-based Warp Map Generator tool
Keypad for direct input selection and control of common adjustments as well as OSD menu access.
USB port for uploading software updates and new features
Power Requirements
100-264VAC, 35W typical
Warranty
3-years return to base warranty covers parts and labor, shipping excluded.
Only the HQView320 and 520 have Optoma optimised presets - the other models listed can be supplied by Optoma but are supported by Calibre not the Optoma ProAV team
Automatic Geometric Alignment
The HQView320/520 are Scalable Ready certified meaning that they can be used with Scalable Display Technologies products for automatic geometric alignment of displays. This software-driven, camera-based system automatically aligns displays with unsurpassed accuracy and speed, further simplifying the setup of blending and warping projects.
