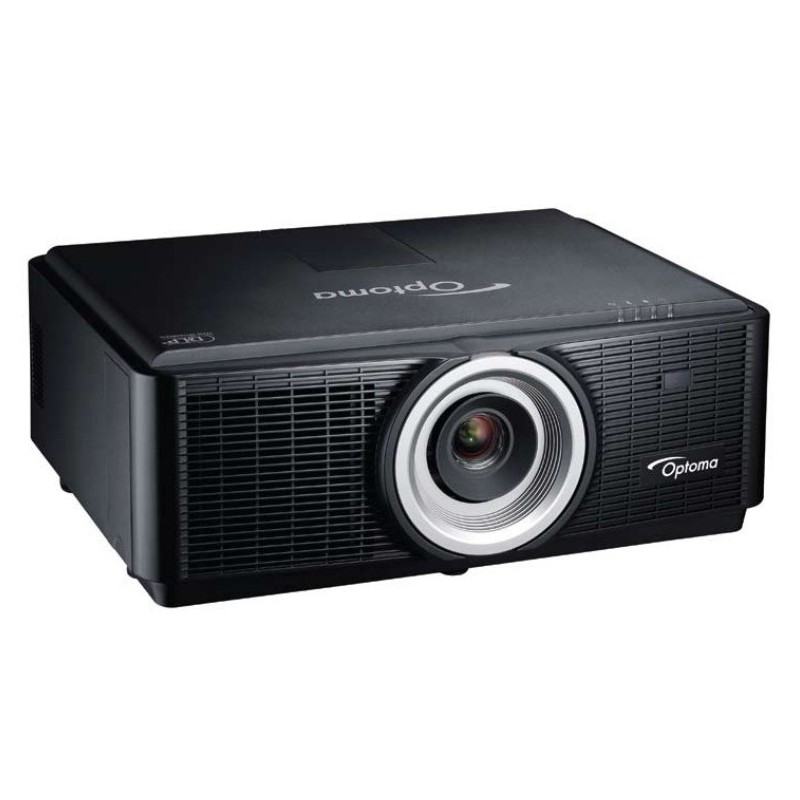

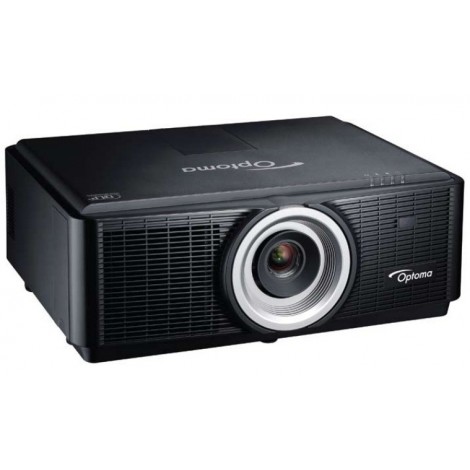

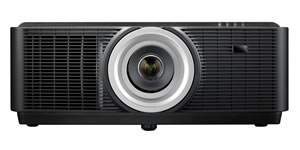

De Optoma EX855 is uitermate geschikt voor grote vergaderzalen en AV staging.

Prijs zonder lens. Kies een lens naar keuze

Aspect Ratio: 4:3
Helderheid: 6000 ANSI lumens
Contrast Ratio: 2000
Display Type: DLP
Resolutie: XGA (1024 x 768)

Optoma

EX855

Uncompromising image quality, outstanding flexibility and ultimate reliability
  • 5500L - Native XGA (1024x768)
  • Installation flexibility- 3x Lens options, motorised lens shift, focus and zoom
  • Mechanical shutter
  • 120Hz 3D projection
  • Advanced geometric adjustment
The ProScene EX855 & EW865 are the epitome of our projection expertise; a revolution; a product designed exclusively for
demanding professional applications.

XGA or WXGA and 5500/6000 lumens delivering bright crystal clear images from a single lamp, the auto cleaning dust filter
prevents dust and dirt from affecting the system ensuring optimal image quality with minimal maintenance.

Motorised lens shift, focus and zoom combined with the extensive lens options provide installation flexibility for simple, trouble free use in a wide variety of situations.

Superb image quality is at the heart of every ProScene product design. At every step, commencing with the incredibly reliable, high resolution XGA or WXGA DLP® chip, where the image is initially created, via the Philips UHP lamp.

ProScene chose DLP® technology for its image quality and unmatched reliability. The reflective nature of DLP® micro-mirror technology provides highly efficient bright images with great contrast whilst maintaining precise colour accuracy and natural, real-world colour reproduction.
Geluid productie: 31 dB Uitgebreide Beeld en Kleur Opties

For demanding professional applications, the proven reliability of DLP® technology makes it the obvious choice.Aspect Ratio: 4:3 (Native) 16:9
Helderheid: 6000 ANSI lumens
Contrast Ratio: 2000
Display Type: DLP
Resolutie: XGA (1024 x 768)
Inputs:
1 x HDMI
1 x Component
1 x S-Video
1 x Composiet
3 x Stereo Mini Jack
2 x RCA Audio
1 x VGA D-Sub 15pin
Outputs:
1 x Stereo Mini Jack
1 x VGA D-Sub 15pin
Audio: 1 x 5W Mono Speaker
Controle:
1 x USB Remote Control
1 x RS-232
1 x RJ-45 LAN
Verbruik: 1W (Standby)

Image Quality

Superb image quality is at the heart of every ProScene product design. At every step, commencing with the incredibly reliable, high resolution WXGA or XGA DLP® chip, where the image is initially created, via the Philips UHP lamp. ProScene chose DLP® technology for its image quality and unmatched reliability. The reflective nature of DLP® micro-mirror technology provides highly efficient bright images with great contrast whilst maintaining precise colour accuracy and natural, real-world colour reproduction. For demanding professional applications, the proven reliability of DLP® technology makes it the obvious choice.

Amazing Colour

The EX855 incorporate BrilliantColor™ technology to produce stunningly bright images with perfectly balanced life-like colours.

DLP® Technology

DLP® technology from Texas Instruments® is widely recognised and acclaimed for its unmatched reliability and long lasting image performance. When combined with high brightness and native contrast ratios, it becomes the obvious choice for demanding applications. Independent testing has proven DLP® to be the most reliable of projector technologies. Whilst the competition may show image quality decline after only a few thousand hours, DLP® technology can remain unchanged over hundreds of thousands of hours.

3D Technology

Using the inherent speed of DLP® technology, The Optoma EX855 and EW865 can output video and images at an astonishing rate of 120Hz, allowing you to show full screen, full colour, stereoscopic 3D. The 3D effect is generated by splitting this signal into two standard video streams, one for each eye. Using DLP® Link™ technology, the 3D glasses synchronise with the image on screen to filter each stream to the correct eye. Your brain then combines the two streams to make them jump into life

The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling systems. Support for 3D TV broadcast systems, (SKY in the UK) or Blu-ray 3D™ will require the Optoma 3D-XL that is available separately.

UHP Lamps

The Philips 400W UHP lamp provides the highest possible luminance, the essential prerequisite of all highly efficient projectors.

These lamps have outstanding brightness, stay brighter for longer, and provide an optimal colour spectrum. In addition, the lamp drivers are specifically tuned for the lamps, ensuring not only optimum operating conditions for every situation, but also provide sophisticated lamp pulsing modes and the assurance that colour can be fine-tuned according to the application.

Reliability

All ProScene projectors are designed for continuous 24/7 operation. Only the most reliable, industry proven components are used to ensure superior reliability. This hard-earned “capability” has been meticulously developed over a decade of designing and supporting millions of projectors the world over. ProScene customers can therefore be confident that, as one of the most reliable projector brands in the industry today, Optoma has a reputation for service excellence that is well deserved.

Installation Flexibility

To help meet the seemingly limitless challenges of ProAV installations both the EW865 and EX855 provides 3 lens options with motorised zoom and focus to ensure you can get the image size you require. Motorised lens shift helps you get the image exactly where you want it and the 6 Segment RGBCYW colour wheel ensures you can match the image quality and brightness exactly to the application’s requirements.

Motorised Lens Shift

Standard projection position
Lens Shift Range
Horizontal Vertical
Left Right Down Up
+/-18% +/-18% +/-60% +/-60%

360° Projection Capability

Images can be projected over a full 360° range along the vertical axis* including reproduction on an ceiling or floor. The application possibilities are limitless.

Self-Cleaning Filter

The self-cleaning air filter senses when the filter is becoming clogged and momentary reverses the direction of the fan to clear the filter. As a result the time between service intervals is greatly increased.

Flexibility

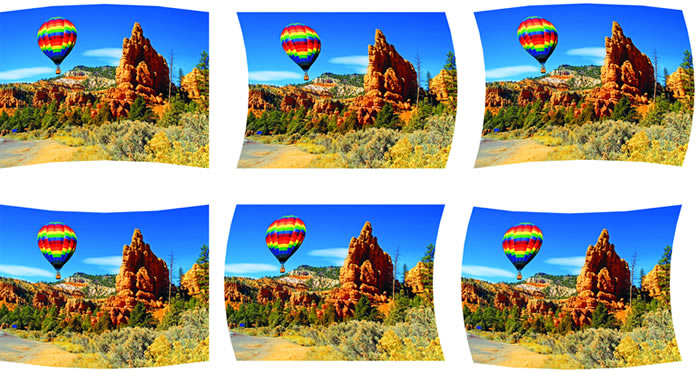

Geometric Adjustment (Option)

Geometric correction enables projection on to spherical, cylindrical and other curved shaped screens

Lens Options


Optoma model name BX-CTA02 BX-CTA01 BX-CTA03
Focal Length (f) (mm) 18.07mm 14.05mm 22.61mm
F number 2 2.3 2.3
Zoom Range (Ratio) 1.25x 1.28x 1.9x
Zoom & Focus Adjustment Motorised
Throw Ratio (XGA) 1.61 ~ 2.02 1.25 ~ 1.61 2.01 ~ 3.85
Throw Ratio (WXGA) 1.28 ~ 1.61 1 ~ 1.28 1.6 ~ 3.07
Projection Image Size 50-500"

Throw Distance Chart

Diagonal Image Size BX-CTA02 BX-CTA01 BX-CTA03
  Min (m) Max (m) Min (m) Max (m) Min (m) Max (m)
50" 1.64 2.05 1.27 1.64 2.04 3.91
60" 1.96 2.46 1.52 1.96 2.45 4.69
70" 2.29 2.87 1.78 2.29 2.86 5.48
80" 2.62 3.28 2.03 2.62 3.27 6.26
100" 3.27 4.10 2.54 3.27 4.08 7.82
150" 4.91 6.16 3.81 4.91 6.13 11.73
200" 6.54 8.21 5.08 6.54 8.17 15.65
250" 8.18 10.26 6.35 8.18 10.21 19.56
300" 9.81 12.31 7.62 9.81 12.25 23.47

Control

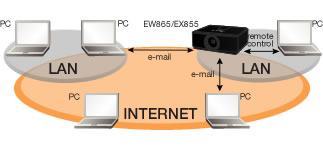

System Integration Control

Multiple projectors can be monitored over LAN and also provide the user with an email message alert in case an error occurs or a lamp fails or needs to be replaced. The web browser interface can also control all aspects of the EX855.

Global monitoring of all AV devices
Track projector lamp life
Email alerts and instant notificationshelp desk requests, service reminders, device failure or theft
Event Scheduling

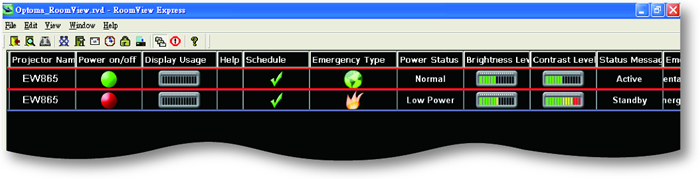

Download Crestron RoomView® Express for free at:  www.crestron.com/getroomview

Hassle-free PC-less Presentation

Enjoy hassle-free presenting with the USB Reader to project a JPEG presentation from a USB flash drive.

Wireless

Easy to use and simple to setup, the Optoma Mini Wi-Fi Dongle lets you connect and display presentation materials wirelessly from a Laptop, PC or Mac to your projector.

This miniature sized Wi-Fi Dongle brings you all the benefits of seamless wireless connectivity to a meeting or event.

Optional accessory

Green

We know that improving our products is the best way to reduce our impact on the environment. That’s why at Optoma, we design our products to have a long usable life, use fewer materials, ship with the minimum packaging and be free of all possible toxic substances. Naturally, energy efficiency and being recyclable are built in at the design stage. With each new product, we strive towards minimising our environmental impact. For full details of Optoma Project Green please visit our website.

Eco Friendly

Cut up to 30% from your engergy bills using 24-hour automated power scheduling to ensure that projectors power off when not in use.

Direct Power On
The projector will start up instantly when power is supplied to the Unit. This eliminates the need to manually turn on the projector via the remote control or the keypad, ideal for use in rooms with a “master” power switch.
Signal Power On
The projector will power on when it receives a signal through one of the PC/video inputs. This ensures that the projector is only switched on when it is needed.
Auto Power Off
If after a pre-determined time the projector does not receive a signal, it will turn itself off automatically, conserving power and extending the life of the lamp.
Eco Standby Mode
Reduces energy consumption to less than 0.5W when the projector is not in use.

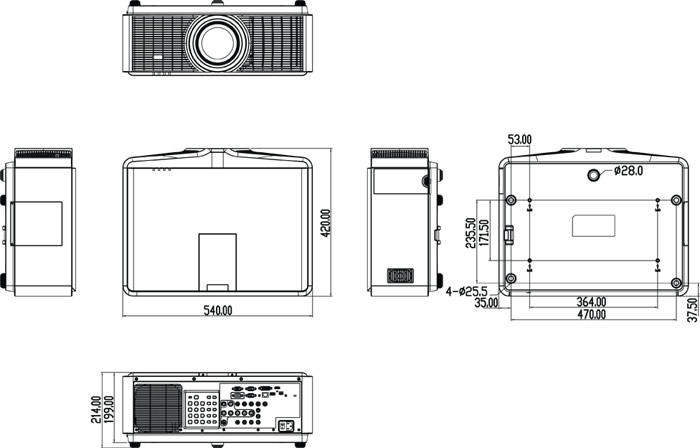

Dimensions
